Overview


The fly out menu is a side menu to navigate to station assets by their respective ords. It uses a JSON configuration to set up the links. Before you start, copy the .jar file to your modules directory. Restart the station and Workbench.

Usage


1. Copy the flyOutMenu-ux.jar file to your modules directory.
2. Open the module from your palette file.

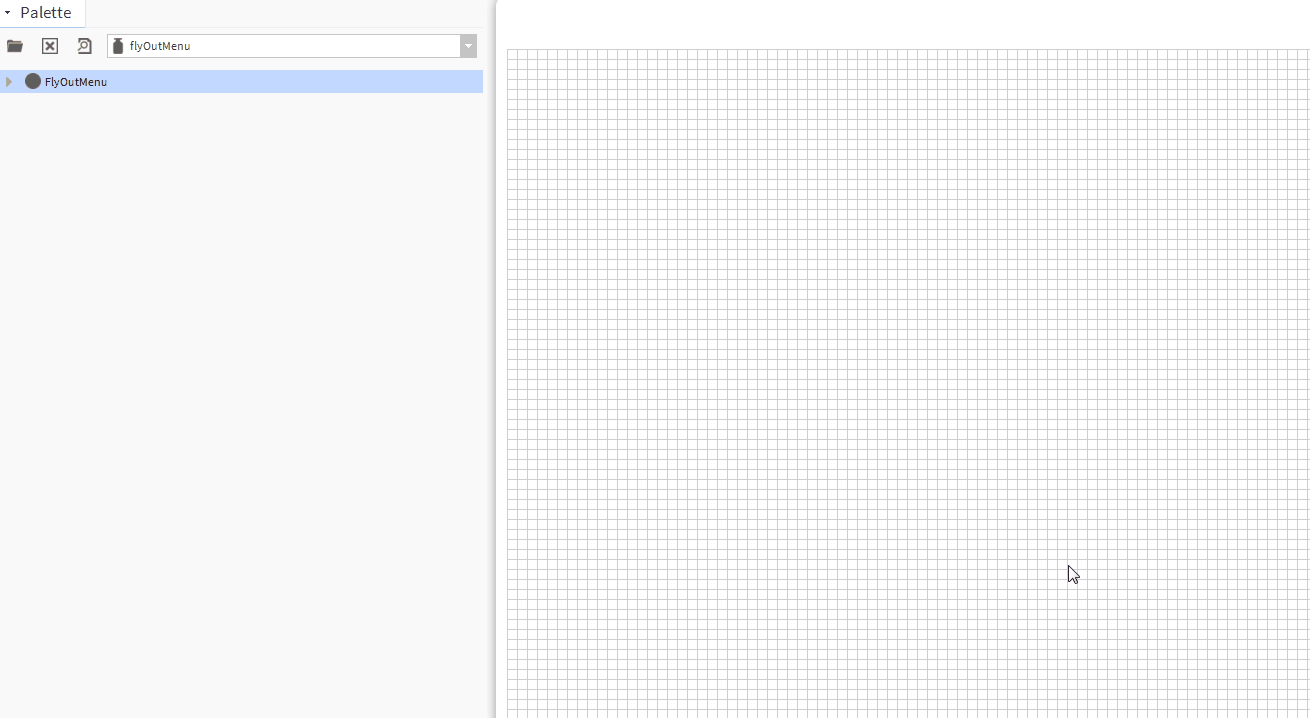

3. Drag and drop the widget from the palette onto your px view.

Tridium Desktop/Mobile Menu


Properties

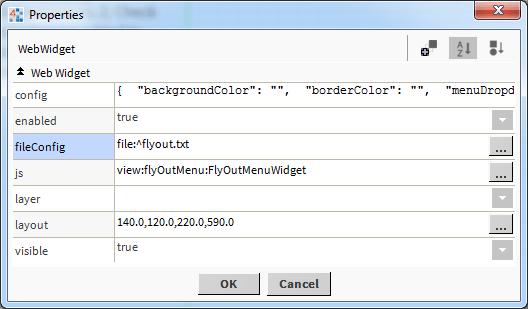

The menu has a few properties. You can copy and paste JSON string into the config property. OR you can reference a file which contains your menu config.

N4 Menu


Modifying the Config


The config is in JSON format. You can customise as needed. Below is the default config with examples. There are 2 themes: default and inverse. However you can override values as needed.

 {
  "backgroundColor": "",
  "borderColor": "",
  "linkBackgroundColor": "",
  "linkBackgroundHoverColor": "",
  "linkFontColor": "",
  "linkFontHoverColor": "",
  "linkFontFamily": "",
  "linkFontWeight": "",
  "linkFontSize": "",
  "position": "",
  "positionLeft": "",
  "positionTop": "",
  "menu": [
    {
      "li": "",
      "link": [
        "Link 1",
        "station:|slot:/Drivers/NiagaraNetwork/AHU1"
      ]
    },
    {
      "li": "Menu 1",
      "flyOutLink": [
        {
          "li": "",
          "link": [
            "Action",
            "station:|slot:/Drivers/NiagaraNetwork/AHU1"
          ]
        },
        {
          "li": "",
          "link": [
            "Another Action",
            "station:|slot:/Drivers/NiagaraNetwork/AHU2"
          ]
        },
        {
          "li": "",
          "link": [
            "Something Else Here",
            "station:|slot:/Drivers/NiagaraNetwork/AHU1"
          ]
        },
        {
          "li": "",
          "link": [
            "Separated Link",
            "station:|slot:/Drivers/NiagaraNetwork/AHU1"
          ]
        },
        {
          "li": "",
          "link": [
            "One More link",
            "station:|slot:/Drivers/NiagaraNetwork/AHU1"
          ]
        }
      ]
    },
    {
      "li": "Menu 2",
      "flyOutLink": [
        {
          "li": "",
          "link": [
            "Action",
            "station:|slot:/Drivers/NiagaraNetwork/AHU2"
          ]
        },
        {
          "li": "",
          "link": [
            "Another Action",
            "station:|slot:/Drivers/NiagaraNetwork/AHU1"
          ]
        },
        {
          "li": "",
          "link": [
            "Something Else Here",
            "station:|slot:/Drivers/NiagaraNetwork/AHU1"
          ]
        },
        {
          "li": "",
          "link": [
            "Separated Link",
            "station:|slot:/Drivers/NiagaraNetwork/AHU2"
          ]
        },
        {
          "li": "Sub Menu",
          "flyOutLocation": "go-down",
          "subMenu": [
            {
              "li": "",
              "link": [
                "Sub Action",
                "station:|slot:/Drivers/NiagaraNetwork/AHU1"
              ]
            },
            {
              "li": "",
              "link": [
                "Another Action",
                "station:|slot:/Drivers/NiagaraNetwork/AHU1"
              ]
            },
            {
              "li": "",
              "link": [
                "Something Else Here",
                "station:|slot:/Drivers/NiagaraNetwork/AHU1"
              ]
            },
            {
              "li": "",
              "link": [
                "Another Link",
                "station:|slot:/Drivers/NiagaraNetwork/AHU1"
              ]
            },
            {
              "li": "",
              "link": [
                "One More link",
                "station:|slot:/Drivers/NiagaraNetwork/AHU1"
              ]
            }
          ]
        }
      ]
    },
    {
      "li": "",
      "link": [
        "Link 2",
        "station:|slot:/Drivers/NiagaraNetwork/AHU2"
      ]
    },
    {
      "li": "",
      "link": [
        "Link 3",
        "station:|slot:/Drivers/NiagaraNetwork/AHU1"
      ]
    }
  ]
}


JSON Editing


1. To help build your menu configuration use an online JSON editor like:
https://jsoneditoronline.org/
Copy and paste the above JSON and modify.

2. After you have made changes to the JSON, set the config property value of the menu:

IMPORTANT. You should remove all carriage returns and line breaks from the generated configuration before pasting. You can do this by using a text editor like Notepad++. In Notepad++ do CTRL+H (make sure extended Search mode is selected) to find and replace \r and \n with blank. This will remove all carriage returns and line breaks.

3. For the hyperlinks, valid ords must be used.
e.g. station:|slot:/Drivers/NiagaraNetwork/AHU1

4. Please contact us if you're having trouble setting up the menu configuration.

File Config
You can point the menu to a file that exists on the station. Valid values are ords e.g.:
file:^dropdownMenu/config.txt
If you do not specify a file reference the config property will be used instead.

backgroundColor, borderColor, etc.
You can override the values for these properties. Using the JSON above, specify a color in hex format e.g. #FFFFFF. If this field is left blank, the theme colors will be used.

Position
You can override the menu position by setting position propert to absolute and the positionLeft and positionTop properties to XXpx, e.g. 20px.

* Workbench Viewing Workaround
Niagara Px View doesn't allow the menu items to appear over other items, however, there is a workaround:
If you're running 4.3 or above, there should be a "toggle preview" button at the end of the toolbar when looking at a Px graphic. This will show you your Px page rendered in a browser.

Fly Out Location
The is the location where the sub menu should appear. Possible values are go-up or go-down



Using in your HTML Page


You can now use the widget in your custom html page as long as the html file is in a appropriate station directory. E.g.:
C:/../station/shared/demo1.html

1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:

4. Change the configuration values as required. IMPORTANT: When using in html the links should be changed to the following format:
/ord/station:|slot:/Drivers/Logic/AHU1_on_off


        <script type="text/javascript">

            var require = {
                paths: {
                    "nmodule": "/module",
                    "baja": "/module/bajaScript/rc/plugin/baja",
                    "bajaScript": "/module/bajaScript/rc",
                    "bajaux": "/module/bajaux/rc",
                    "lex": "/module/js/rc/lex/lexplugin",
                    "css": "/module/js/com/tridium/js/ext/require/css",

                    "jquery": "/module/js/rc/jquery/jquery-2.1.1",
                    "Promise": "/module/js/rc/bluebird/bluebird",

                    // these are runtime dependencies
                    "hbs": "/module/js/rc/require-handlebars-plugin/hbs",
                    "i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
                    "json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
                    "underscore": "/module/js/rc/underscore/underscore",
                },

                hbs: {
                    disableI18n: true
                }
            }
        </script>
        <script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
        <script type="text/javascript"
                src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
        <script>
            require(['/module/flyOutMenu/rc/flyOutMenuWidget.run.js'], function (app) {

                app.initialiseMenu({
                    config: '<JSON CONIFG HERE>',
                    fileConfig: 'file:^dropdownMenu/config.txt',
                });
            });
        </script>
        </head>
        <!--html to go here-->
        <div id="widget1" style="width:300px;height:300px;"></div>
        <!--Rest of your html below...-->
