Niagara Icon Buttons


Overview


Use font awesome custom icon button styles for actions in forms, dialogs, and more. Includes support for a handful of contextual variations, sizes, states, and more. Adds font awesome icon button. Before you start, copy the .jar file to your modules directory. Restart the station and Workbench.

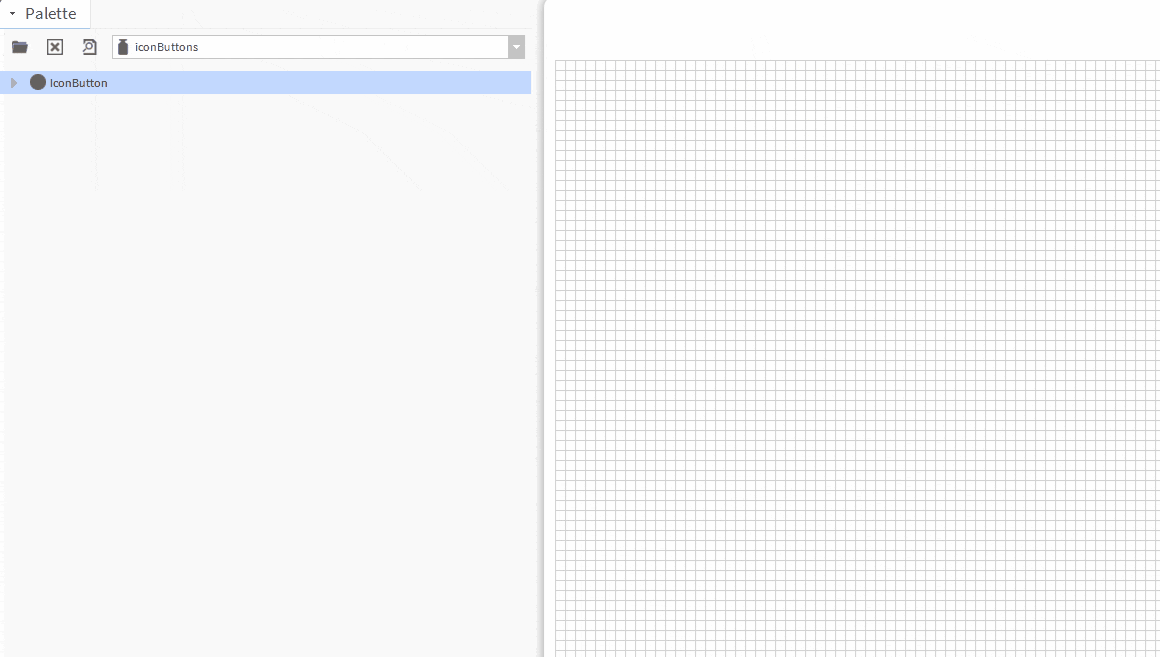

Usage


1. Copy the iconButtons-ux.jar file to your modules directory.
2. Open the module from your palette file.
3. Drag and drop the widget from the palette onto your px view.

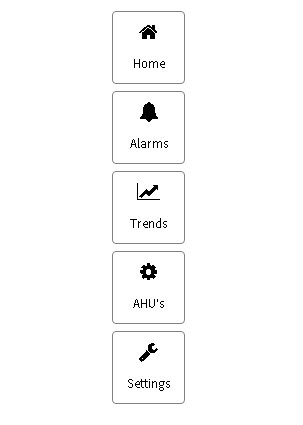

Drag n' Drop Widget'

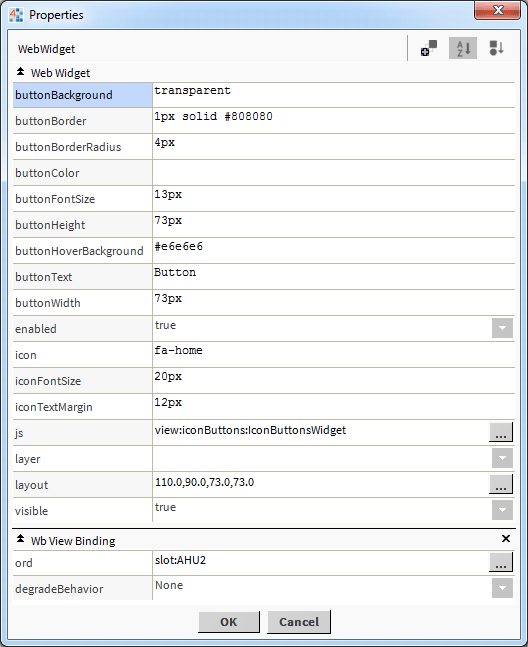

Widget Properties

Properties


The buttons have a number of configurable properties that can be used to modify look, feel, and functionality. Change the properties as required.

Main Ord:

The Niagara object the button points to.

Set this to an absolute ord, e.g.
station:|slot:/Drivers/NiagaraNetwork/AHU5
OR
relativized ORD e.g. slot:AHU5

Colors:

When changing colors, all icon buttons on screen are affected and should be set to the same color scheme.


Performance Test


Performance Test...

Licensing


Widgets and drivers must be licensed with us. Licenses are bound to the stations host Id. You will be provided access to the Software and Licensing Portal where you can manage your own licenses. Here you can add, update, or delete licenses as needed.

There are few ways to get a license file:

1. Add our licensing module to your station services. This module automatically retrieves the license from our servers and saves it to your stations shared folder directory.

2. Alternatively, Login to the Software and Licensing Portal (link provided in Order Confirmation) and add your host id's as needed. Copy the license file to the stations shared directory.

Finally, make sure the station user has access to WLicenseService in the user management and category service section.

Niagara Licensing

Niagara Dashboard


Niagara IOT technologies and modern toolsets allow you to build a powerful Niagara dashboard which is real time, data-driven, and cost effective. Our widgets are purpose-built by providing information with faster communication through real-time, data-driven, dashboards for web, desktop and mobile devices. You can now create a cutting-edge display of conventional HVAC system graphics, Dashboards, Alarms & Scheduling, Historical Data, and Analytics.
