N4 Street Maps With Values

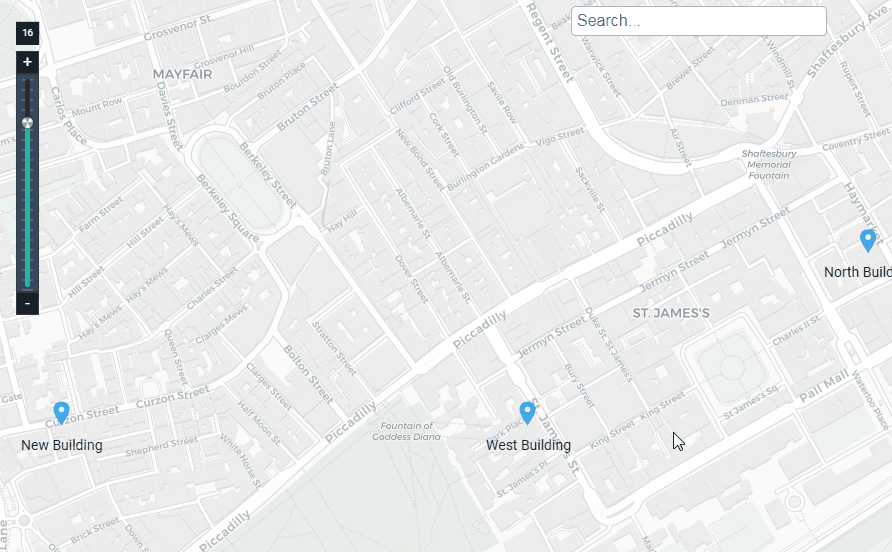

N4 Maps Click above for Demo...

Overview


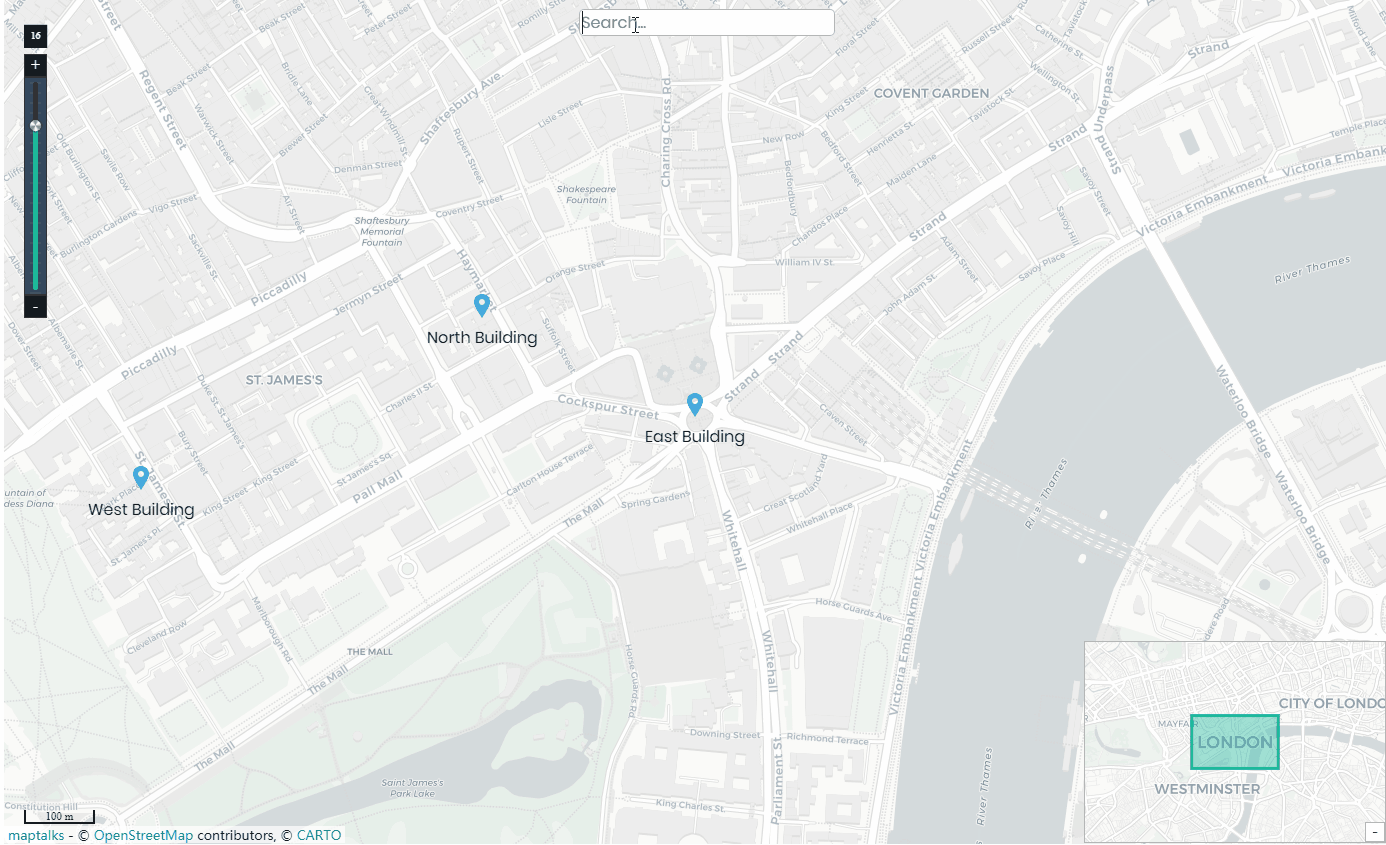

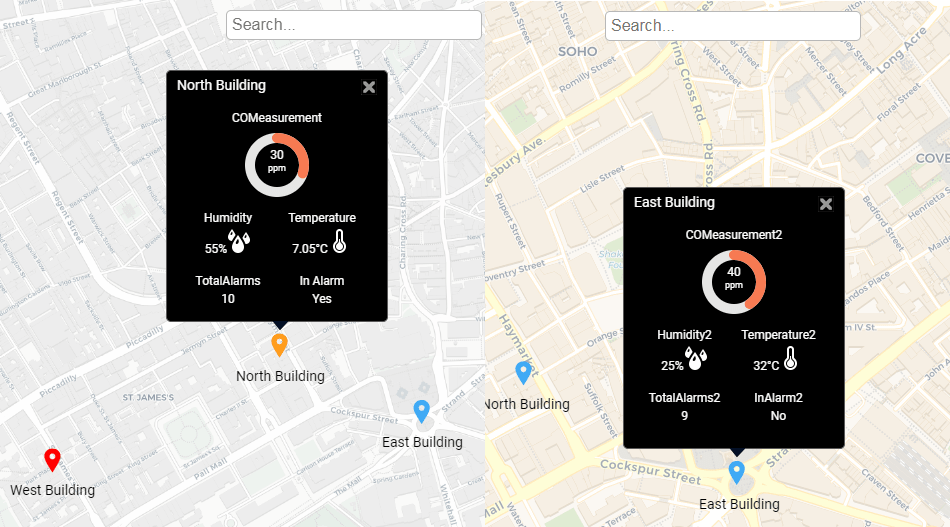

The Open Street Maps widget uses the Maptalks API and displays a street map of the world and you can add markers via a simple JSON config. Choose between a light or dark theme. At different zoom levels, when markers are too close together, they automatically cluster together and show the number of markers in that area. Unlike our other open maps widget, this widget allows you to set up to 5 ord values. The values are shown on a tooltip via single click, which is great for mobile users as well. Markers can have different colours OR bind each marker to a boolean/enum. 3 colours of your choice make up the change in value. Tooltip icons can also be changed to a image of your choice, or removed entirely. Values and markers also update in real-time. A search box will also help find markers and automatically pan to them when clicked.

*You need an internet connection to view the maps, however if you are on a restricted network, its recommended you set up an outbound firewall rule to the mapping server: http://d.basemaps.cartocdn.com

The widget has a number of configurable properties that can be used to modify look, feel, and functionality.

Usage


1. Copy the openStreetMapsWithValues-ux.jar file to your modules directory.
2. Open the module from your palette file.

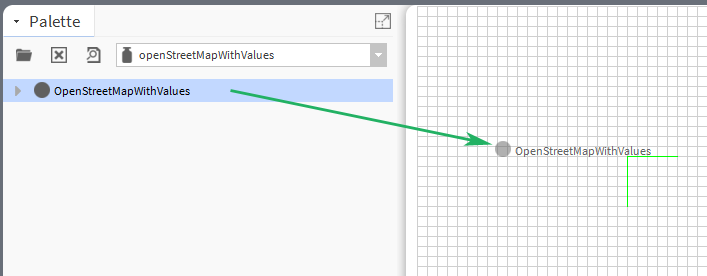

3. Drag and drop the widget from the palette onto your px view.

Click here for extended video..

Open Street Maps Widget

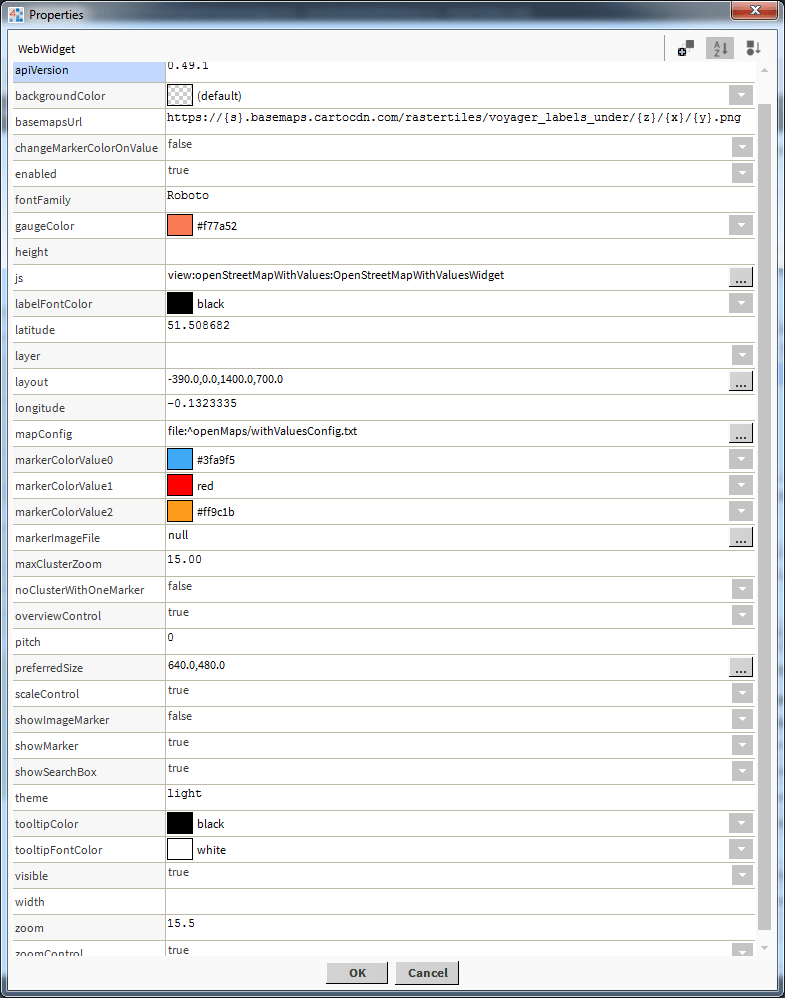

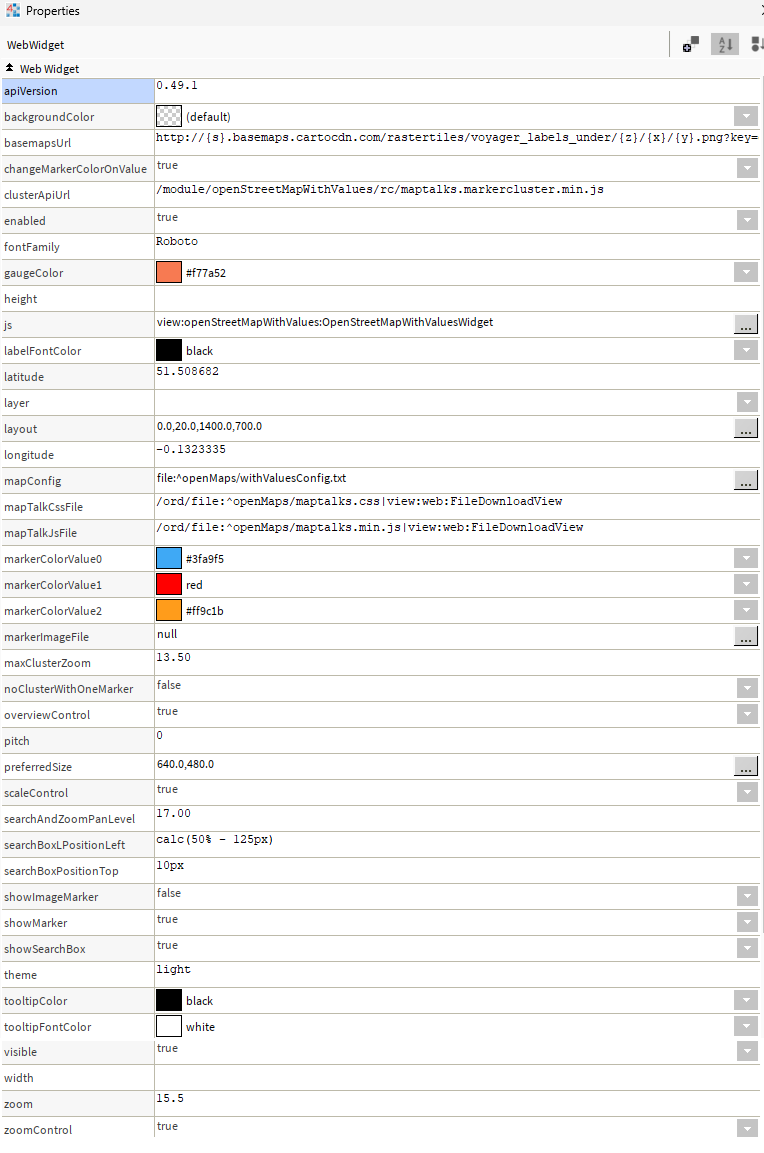

Widget Properties

Properties


The widget has a number of configurable properties that can be used to modify look, feel, and functionality. Change the properties as required:

File Config

A JSON config for map markers. See below for setup.
You can point the menu to a file that exists on the station.
Valid values are ords e.g.: file:^openMapsFolder/config.txt
If you do not specify a file reference, an message will show up.
Verify all point exist in your config.

Heres a sample config to help you get started. Download

Latitude/Longitude

The map will display at this location when initialised.

Pitch

The viewing angle of the map.

Overview Control, Scale Control, Zoom Control

Shows/hides the controls on the map. Set to true or false.

Zoom

The default zoom level. Default is 15.5.

Height/Width

Set these values to manually set the height/width of the map frame.

API Version

The current version is 0.47.0. As we do not maintain the mapping images, change this value as new versions are released. The latest version value can be found here. https://github.com/maptalks/maptalks.js/releases

Markers & Links


The marker config is in JSON format. You can customise as needed. Special characters should be avoided. Advanced users can enter html content in the label and tooltipText properties. Heres a sample config to help you get started. Download

If no link is specified, the marker, label, and tooltip will be shown. For links to navigate correctly in Workbench, and if you're running 4.3 or above, there should be a "toggle preview" button at the end of the toolbar when looking at a Px graphic. This will show you your Px page rendered in a browser and the links will work correctly


{
"markers": [{
		"lat": "51.508682",
		"long": "-0.1323335",
		"link": "/ord/station:|slot:/Drivers/Graphics/AHUs",
                "linkTarget": "parent",
		"label": "North Building",
		"defaultMarkerColor": "#3fa9f5",
		"markerChangeValueOrd": "station:|slot:/Drivers/Sites/Overview/EnumWritable",
		"ord": "station:|slot:/Drivers/Sites/Overview/COMeasurement",
		"ordDisplayName": "",
		"ord1": "station:|slot:/Drivers/Sites/Overview/Humidity",
		"ord1DisplayName": "",
		"ord1Icon": "/module/openStreetMapWithValues/rc/humidity-sm.png",
		"ord2": "station:|slot:/Drivers/Sites/Overview/Temperature",
		"ord2DisplayName": "",
		"ord2Icon": "/module/openStreetMapWithValues/rc/themometer-sm.png",
		"ord3": "station:|slot:/Drivers/Sites/Overview/TotalAlarms",
		"ord3DisplayName": "",
		"ord3Icon": "",
		"ord4": "station:|slot:/Drivers/Sites/Overview/InAlarm",
		"ord4DisplayName": "In Alarm",
		"ord4Icon": ""
	},
	{
		"lat": "51.5063802",
		"long": "-0.1396422",
		"link": "/ord/station:|slot:/Drivers/Sites",
                "linkTarget": "parent",
		"label": "West Building",
		"defaultMarkerColor": "#3fa9f5",
		"markerChangeValueOrd": "station:|slot:/Drivers/Sites/Overview/InAlarm1",
		"ord": "station:|slot:/Drivers/Sites/Overview/COMeasurement1",
		"ordDisplayName": "Custom Name 1",
		"ord1": "station:|slot:/Drivers/Sites/Overview/Humidity1",
		"ord1DisplayName": "",
		"ord1Icon": "/module/openStreetMapWithValues/rc/humidity-sm.png",
		"ord2": "station:|slot:/Drivers/Sites/Overview/Temperature1",
		"ord2DisplayName": "",
		"ord2Icon": "/module/openStreetMapWithValues/rc/themometer-sm.png",
		"ord3": "station:|slot:/Drivers/Sites/Overview/TotalAlarms1",
		"ord3DisplayName": "",
		"ord3Icon": "",
		"ord4": "station:|slot:/Drivers/Sites/Overview/InAlarm1",
		"ord4DisplayName": "",
		"ord4Icon": ""
	},
	{
		"lat": "51.507351",
		"long": "-0.127758",
		"link": "",
                "linkTarget": "parent",
		"label": "East Building",
		"defaultMarkerColor": "#3fa9f5",
		"markerChangeValueOrd": "station:|slot:/Drivers/Sites/Overview/InAlarm2",
		"ord": "station:|slot:/Drivers/Sites/Overview/COMeasurement2",
		"ordDisplayName": "",
		"ord1": "station:|slot:/Drivers/Sites/Overview/Humidity2",
		"ord1DisplayName": "",
		"ord1Icon": "/module/openStreetMapWithValues/rc/humidity-sm.png",
		"ord2": "station:|slot:/Drivers/Sites/Overview/Temperature2",
		"ord2DisplayName": "",
		"ord2Icon": "/module/openStreetMapWithValues/rc/themometer-sm.png",
		"ord3": "station:|slot:/Drivers/Sites/Overview/TotalAlarms2",
		"ord3DisplayName": "",
		"ord3Icon": "",
		"ord4": "station:|slot:/Drivers/Sites/Overview/InAlarm2",
		"ord4DisplayName": "",
		"ord4Icon": ""
	},
	{
		"lat": "51.5063802",
		"long": "-0.1496422",
		"link": "/ord/station:|slot:/Drivers/Sites",
                "linkTarget": "parent",
		"label": "New Building",
		"defaultMarkerColor": "#3fa9f5",
		"markerChangeValueOrd": "station:|slot:/Drivers/Sites/Overview/InAlarm3",
		"ord": "station:|slot:/Drivers/Sites/Overview/COMeasurement1",
		"ordDisplayName": "Level",
		"ord1": "station:|slot:/Drivers/Sites/Overview/Humidity1",
		"ord1DisplayName": "",
		"ord1Icon": "/module/openStreetMapWithValues/rc/humidity-sm.png",
		"ord2": "station:|slot:/Drivers/Sites/Overview/Temperature1",
		"ord2DisplayName": "",
		"ord2Icon": "/module/openStreetMapWithValues/rc/themometer-sm.png",
		"ord3": "station:|slot:/Drivers/Sites/Overview/TotalAlarms1",
		"ord3DisplayName": "",
		"ord3Icon": "",
		"ord4": "station:|slot:/Drivers/Sites/Overview/InAlarm1",
		"ord4DisplayName": "",
		"ord4Icon": ""
	},
	{
		"lat": "51.5163802",
		"long": "-0.1396422",
		"link": "/ord/station:|slot:/Drivers/Sites",
                "linkTarget": "parent",
		"label": "North West Building",
		"defaultMarkerColor": "#3fa9f5",
		"markerChangeValueOrd": "station:|slot:/Drivers/Sites/Overview/InAlarm4",
		"ord": "station:|slot:/Drivers/Sites/Overview/COMeasurement1",
		"ordDisplayName": "Custom Name 1",
		"ord1": "station:|slot:/Drivers/Sites/Overview/Humidity1",
		"ord1DisplayName": "",
		"ord1Icon": "/module/openStreetMapWithValues/rc/humidity-sm.png",
		"ord2": "station:|slot:/Drivers/Sites/Overview/Temperature1",
		"ord2DisplayName": "",
		"ord2Icon": "/module/openStreetMapWithValues/rc/themometer-sm.png",
		"ord3": "station:|slot:/Drivers/Sites/Overview/TotalAlarms1",
		"ord3DisplayName": "",
		"ord3Icon": "",
		"ord4": "station:|slot:/Drivers/Sites/Overview/InAlarm1",
		"ord4DisplayName": "",
		"ord4Icon": ""
	}
]
}


JSON Values Explained:

lat- geo coordinate.
long- geo coordinate.
link- link to when clicked on tooltip label.
linkTarget- link to target window. Default is parent. Possible values: blank, self, parent, or top.
label- label to show on map and tooltip.
defaultMarkerColor- default color for marker when spectrum binding is false.
markerChangeValueOrd- ord binding to marker change value when spectrum binding is used. Absolute ord e.g. station:|slot:/Drivers/Sites/Overview/COMeasurement
ord- ord value for tooltip data. Absolute ord e.g. station:|slot:/Drivers/Sites/Overview/COMeasurement
ordDisplayName- ord value display name on tooltip.
ord1- ord value 1 for tooltip data.
ord1DisplayName- ord value 1 display name on tooltip.
ord1Icon- icon to show on tooltip. Flie can be in the stations shared directory e.g. /ord/file:%5EopenMaps/brt-medium.png or come from a module e.g. /module/openStreetMapWithValues/rc/humidity-sm.png
ord2- ord 2 value.
ord2DisplayName- ord 2 display name.
ord2Icon- ord 2 icon.
ord3- ord 3 value.
ord3DisplayName- Ord 3 display name.
ord3Icon- ord 3 icon.
ord4- ord 4
ord4DisplayName- ord 4 display name.
ord4Icon- ord 4 icons.

JSON Editing

To help build your menu configuration use an online JSON editor like:
https://jsoneditoronline.org/

Using in your HTML Page


You can now use the widget in your custom html page as long as the html file is in a appropriate station directory.
E.g. C:/../stationName/shared/demo.html

1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:


<script type="text/javascript">

    var require = {
        paths: {
            "nmodule": "/module",
            "baja": "/module/bajaScript/rc/plugin/baja",
            "bajaScript": "/module/bajaScript/rc",
            "bajaux": "/module/bajaux/rc",
            "lex": "/module/js/rc/lex/lexplugin",
            "css": "/module/js/com/tridium/js/ext/require/css",

            "jquery": "/module/js/rc/jquery/jquery-2.1.1",  // For N4.4 or higher use /module/js/rc/jquery/jquery-3.2.0.min
            "Promise": "/module/js/rc/bluebird/bluebird",

            // these are runtime dependencies
            "hbs": "/module/js/rc/require-handlebars-plugin/hbs", // For N4.4 or higher use /module/js/rc/handlebars/handlebars.min-v4.0.6
            "i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
            "json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
            "underscore": "/module/js/rc/underscore/underscore",

        },

        hbs: {
            disableI18n: true
        }
    }
</script>

<script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
<script>
    require(['/module/openStreetMap/rc/openStreetMapWidgetWithValues.run.js'], function (app) {

        app.initialiseOpenStreetMap({
            apiVersion: '0.47.0', // maptalks api version. See https://github.com/maptalks/maptalks.js/releases
            divId: '#widget',
            changeMarkerColorOnValue: true, // when true it will use the markerChangeValueOrd 0, 1, or 2 to change colors
            markerColorValue0: '#3fa9f5', // a value of 0 for the markerChangeValueOrd will change it to this color
            markerColorValue1: '#ff0000', // a value of 1 for the markerChangeValueOrd ord will change it to this color
            markerColorValue2: '#FF9C1B', // a value of 2 for the markerChangeValueOrd ord will change it to this color
            mapConfig: 'file:^openMaps/withValuesConfig.txt',  // the json config file saved in the stations shared directory
            markerImageFile: 'file:^openMaps/brt-medium.png', // use a custom marker image file. File must exist in stations shared directory
            gaugeColor: '#f77a52',
            latitude: '51.508682',  // default map location at startup
            longitude: '-0.1323335',
            maxClusterZoom: 15, // zoom level to show markers when they are clustered together
            noClusterWithOneMarker: false, // if only one marker in the cluster, just show the marker
            showMarker: true,  // shows map marker
            showImageMarker: false, // set this to true and showMarker to false to show an image marker instead
            showSearchBox: true,
            fontFamily: 'Roboto',
            backgroundColor: '',
            height: '', // Set these values to manually set the height/width of the map frame
            width: '', // Set these values to manually set the height/ width of the map frame
            pitch: '0', // 3d pitch angle of map. Use right mouse click to have a look at this feature
            zoom: 15.5,
            zoomControl: true,
            scaleControl: true,
            overviewControl: true,
            labelFontColor: '#000000',
            theme: 'light', // light or dark
            tooltipColor: '#000000',
            tooltipFontColor: '#ffffff',
        });
    });
</script>
</head>
<!--2 Divs are required-->
<div style="width:800px;height:450px;">
<div id="widget1" style="width:800px;height:450px;"></div>
</div>


Licensing


Widgets and drivers must be licensed with us. Licenses are bound to the stations host Id. You will be provided access to the Software and Licensing Portal where you can manage your own licenses. Here you can add, update, or delete licenses as needed.

There are few ways to get a license file:

1. Add our licensing module to your station services. This module automatically retrieves the license from our servers and saves it to your stations shared folder directory.

2. Alternatively, Login to the Software and Licensing Portal (link provided in Order Confirmation) and add your host id's as needed. Copy the license file to the stations shared directory.

Finally, make sure the station user has access to WLicenseService in the user management and category service section.
