Niagara Round Gauge


Round Gauge

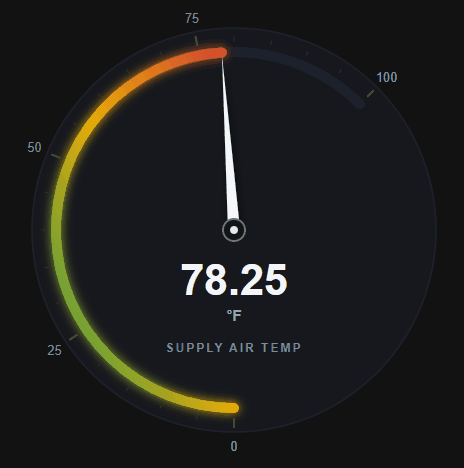

Overview


Drag and drop the Round Gauge widget from the palette onto your px view. It automatically updates when the point or history value changes. Its completely configurable and easy to use.

Usage


1. Copy the roundGauge-ux.jar file to your modules directory.
2. Open the module from your palette file.
3. Drag and drop the widget from the palette onto your px view.

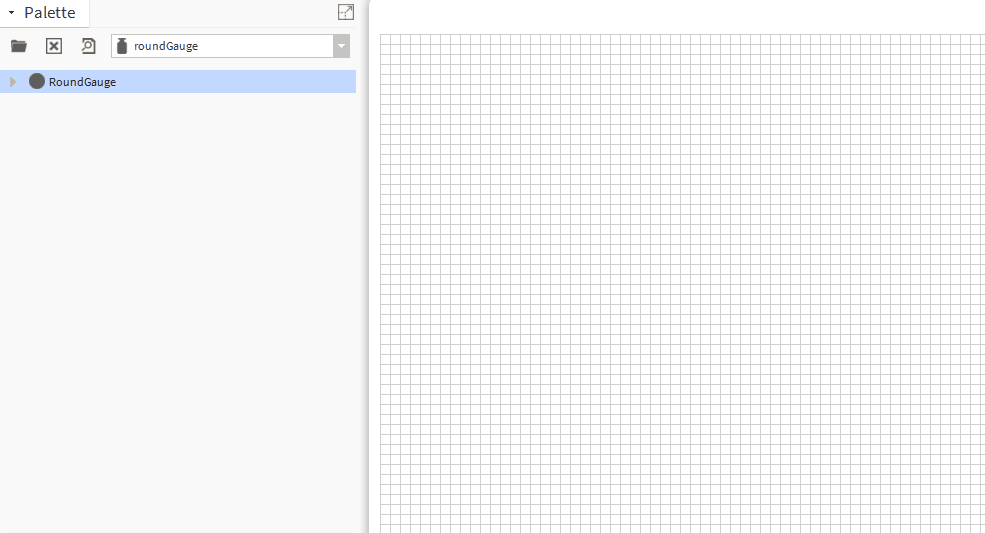

Drag n' Drop Widget'

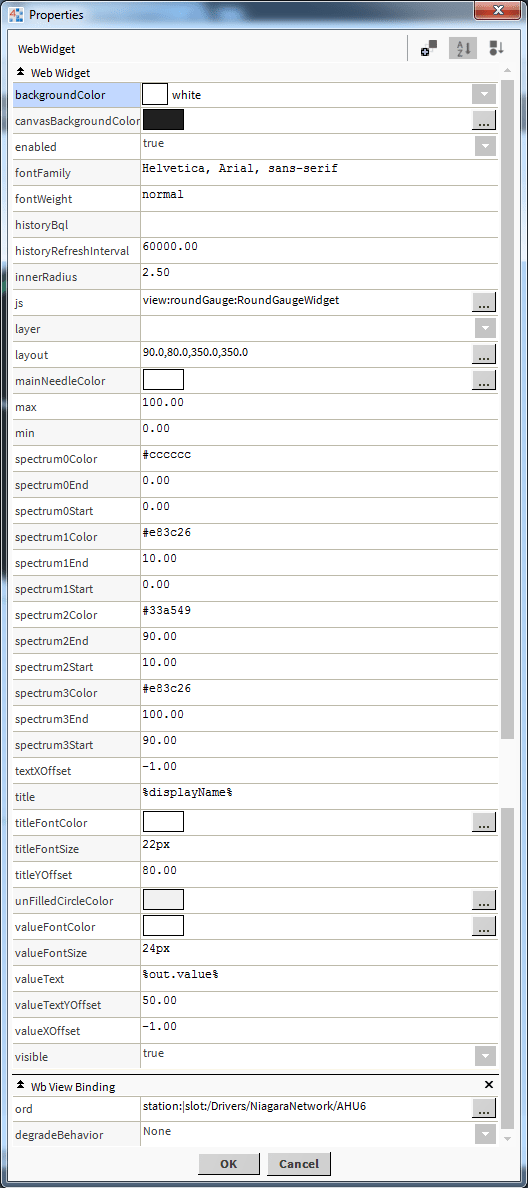

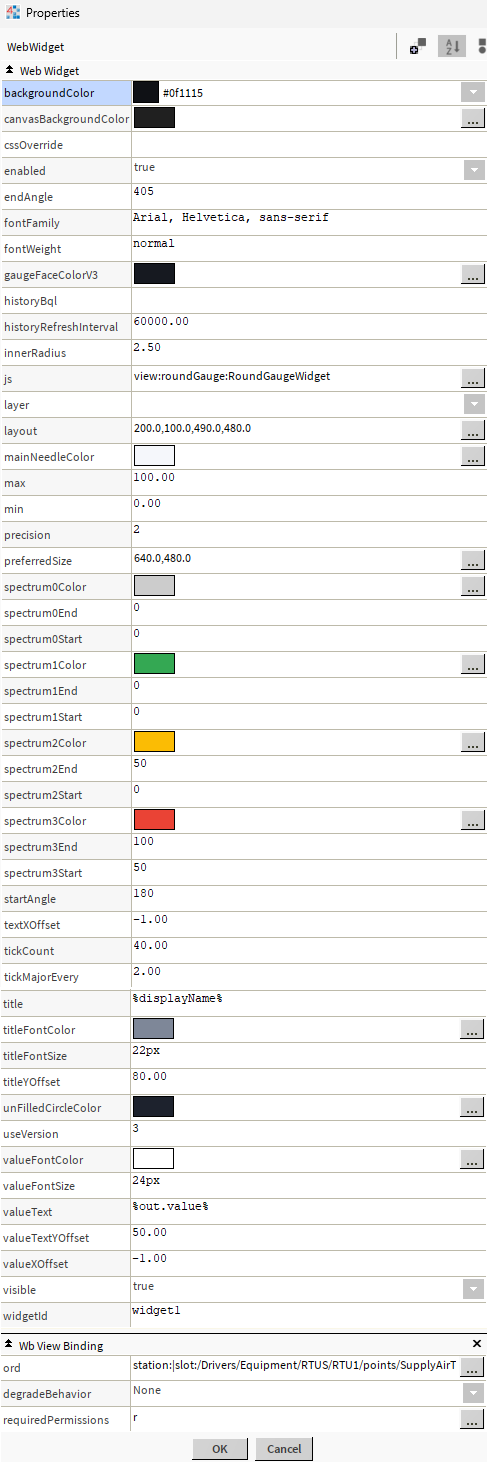

Widget Properties

Properties


The gauge has a number of configurable properties that can be used to modify look, feel, and functionality. Change the properties as required.

Main Chart Binding
Set this to an absolute ord, e.g.
station:|slot:/Drivers/NiagaraNetwork/AHU5 or relativized ORD e.g.
slot:AHU5
The ord should point to a numeric point/writable that has a numeric interval extension.

Background Property:

The background (the area within the circular part of the widget) can be changed to a solid color, gradient, image, or null(transparent).

Canvas Background Property:

The canvas background (the area behind the widget) does not go transparent, but can be changed to a color of your choice.

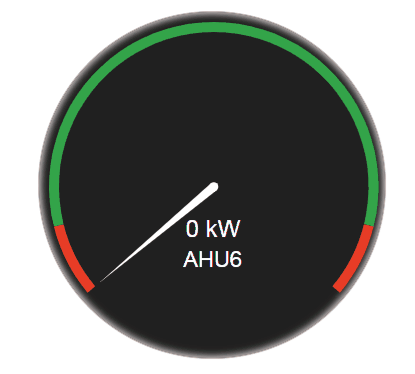

Spectrum Colors:

The gauge allows you to set 4 spectrums. First set the min/max of the widget. For example, if you set the min to 0, and max to 100, you can set the spectrum values to something like:
Spectrum 0 Start = 0
Strectrum 0 End = 0
Spectrum 1 Start = 0
Strectrum 1 End = 40
Spectrum 2 Start = 40
Strectrum 2 End = 60
Spectrum 3 Start = 60
Strectrum 3 End = 100

Of course you can set all values to the same color to keep it one color as well.

OR instead of a numeric value, set the start/end to an ord value. e.g.

station:|slot:/Drivers/NiagaraNetwork/SetPointStart0
station:|slot:/Drivers/NiagaraNetwork/SetPointEnd0

You can also mix/match with ords or numeric values.

History Binding:

You can bind the gauge to a history reference. Change the properties as required:

1. Set the value binding as normal.

The value binding must be set in order to gather history records for the point.

2. Set the history BQL property.

Examples:

|bql:history:HistoryRollup.rollup(history:RollupInterval 'monthly')|bql:select max

|bql:history:HistoryRollup.rollup(history:RollupInterval 'monthly')|bql:select min

|bql:history:HistoryRollup.rollup(history:RollupInterval 'monthly')|bql:select avg

|bql:history:HistoryRollup.rollup(history:RollupInterval 'monthly')|bql:select sum

Using in your HTML Page


You can now use the widget in your custom html page as long as the html file is in a appropriate station directory.
E.g. C:/../stationName/shared/webfiles/demo1.html

1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:


<script type="text/javascript">

    var require = {
        paths: {
            "nmodule": "/module",
            "baja": "/module/bajaScript/rc/plugin/baja",
            "bajaScript": "/module/bajaScript/rc",
            "bajaux": "/module/bajaux/rc",
            "lex": "/module/js/rc/lex/lexplugin",
            "css": "/module/js/com/tridium/js/ext/require/css",

            "jquery": "/module/js/rc/jquery/jquery-2.1.1",  // For N4.4 or higher use /module/js/rc/jquery/jquery-3.2.0.min
            "Promise": "/module/js/rc/bluebird/bluebird",

            // these are runtime dependencies
            "hbs": "/module/js/rc/require-handlebars-plugin/hbs", // For N4.4 or higher use /module/js/rc/handlebars/handlebars.min-v4.0.6
            "i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
            "json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
            "underscore": "/module/js/rc/underscore/underscore",
        },

        hbs: {
            disableI18n: true
        }
    }
</script>
<script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
<script>
    require(['/module/roundGauge/rc/roundGaugeWidget.run.js'], function (app) {

        app.initialiseRoundGaugeWidget({
            backgroundColor: 'transparent',
            canvasBackgroundColor: '#202020',
            divId: '#widget1',
            fontWeight: 'normal',
            fontFamily: 'Helvetica, Arial, sans-serif',
            historyBql: '',
            historyRefreshInterval: 60000,
            innerRadius: 2,
            mainNeedleColor: '#fff',
            min: 0,
            max: 100,
            ord: 'station:|slot:/Drivers/NiagaraNetwork/AHU5', // use absolute ord
            precision: '2',
            spectrum0Start: 0, // or point to a set point ord e.g. station:|slot:/Drivers/NiagaraNetwork/SetPointStart0
            spectrum0End: 0, // or point to a set point ord e.g. station:|slot:/Drivers/NiagaraNetwork/SetPointEnd0
            spectrum0Color: '#cccccc',
            spectrum1Start: 0,
            spectrum1End: 10,
            spectrum1Color: '#e83c26',
            spectrum2Start: 10,
            spectrum2End: 90,
            spectrum2Color: '#33a549',
            spectrum3Start: 90,
            spectrum3End: 100,
            spectrum3Color: '#e83c26',
            titleFontColor: '#fff',
            titleFontSize: '22px',
            titleFormat: '%displayName%',
            titleYOffset: 80,
            textXOffset: -1,
            unFilledCircleColor: '#e0e0e0',
            valueFontSize: '24px',
            valueFontColor: '#fff',
            valueFormat: '%out.value%',
            valueTextYOffset: 50,
            valueXOffset: -1,
        });
    });
</script>
</head>
<!--Gauge to go here-->
<div id="widget1" style="width:300px;height:300px;"></div>
<!--Rest of your html below...-->


Licensing


Widgets and drivers must be licensed with us. Licenses are bound to the stations host Id. You will be provided access to the Software and Licensing Portal where you can manage your own licenses. Here you can add, update, or delete licenses as needed.

There are few ways to get a license file:

1. Add our licensing module to your station services. This module automatically retrieves the license from our servers and saves it to your stations shared folder directory.

2. Alternatively, Login to the Software and Licensing Portal (link provided in Order Confirmation) and add your host id's as needed. Copy the license file to the stations shared directory.

Finally, make sure the station user has access to WLicenseService in the user management and category service section.
