Niagara Set Point Slider


Overview

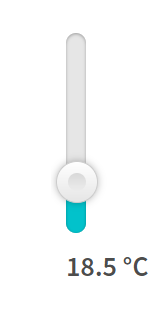

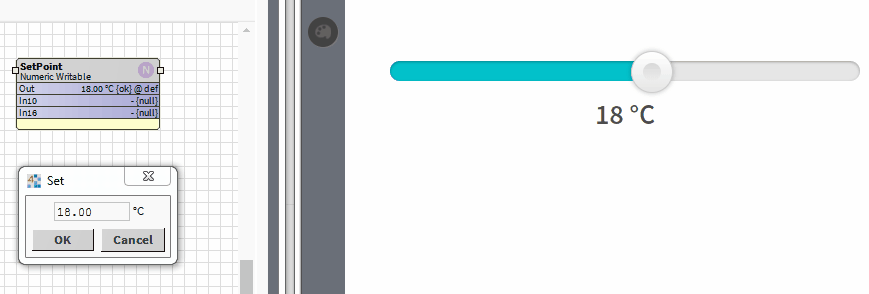

The set point slider control is a intuitive user interface to set a numeric writable within a range. It updates in real-time if the point changes value. Can be viewed as horizontal or vertical simply by changing the configuration setting. Before you start, copy the setPointSlider-ux.jar file to your modules directory. Restart the station and Workbench.

Usage


1. Copy the setPointSlider-ux.jar file to your modules directory.
2. Open the module from your palette file.

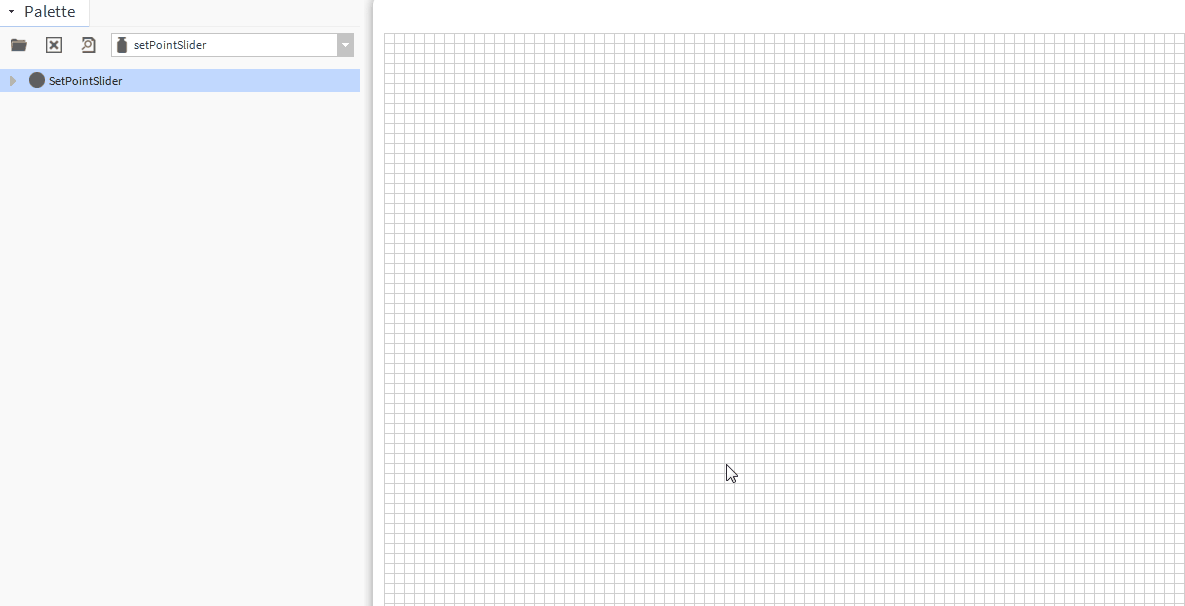

3. Drag and drop the widget from the palette onto your px view.

Set Point Slider Widget

Widget Properties

Properties

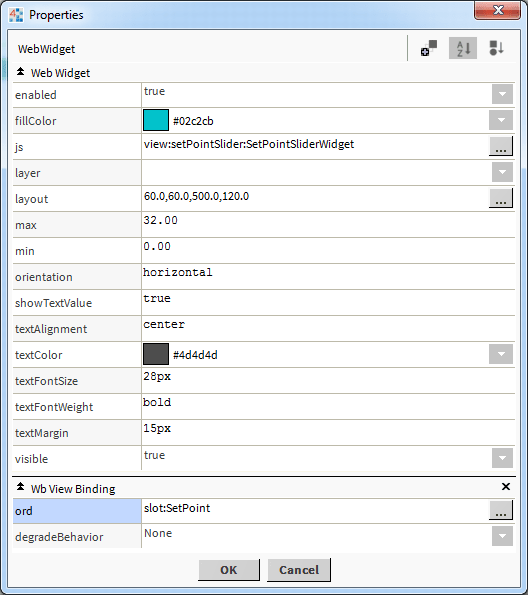

The widget has a number of configurable properties that can be used to modify look, feel, and functionality. Change the properties as required:

Widget Ord Binding (wbViewBinding):

This can be an absolute ord, e.g. station:|slot:/Drivers/NiagaraNetwork/AHU5
OR
relativized ORD e.g. slot:AHU5

Using in your HTML Page


You can now use the widget in your custom html page as long as the html file is in a appropriate station directory.
E.g. C:/../stationName/shared/web/demo1.html

1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:


<script type="text/javascript">

    var require = {
        paths: {
            //pointing nmodule at /module is a Niagara convention, allowing us to
            //refer to module resources without having RequireJS get hung up on
            //the use of absolute paths everywhere.
            "nmodule": "/module",
            "baja": "/module/bajaScript/rc/plugin/baja",
            "bajaScript": "/module/bajaScript/rc",
            "bajaux": "/module/bajaux/rc",
            "lex": "/module/js/rc/lex/lexplugin",
            "css": "/module/js/com/tridium/js/ext/require/css",

            "jquery": "/module/js/rc/jquery/jquery-2.1.1",
            "Handlebars": "/module/js/rc/handlebars/handlebars-v2.0.0",
            "Promise": "/module/js/rc/bluebird/bluebird",

            // these are runtime dependencies
            "hbs": "/module/js/rc/require-handlebars-plugin/hbs",
            "i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
            "json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
            "underscore": "/module/js/rc/underscore/underscore",

        },

        hbs: {
            disableI18n: true
        }
    }
</script>

<script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
<script>
    require(['/module/setPointSlider/rc/setPointSliderWidget.run.js'], function (app) {

        app.initialiseSetPointSlider({
            fillColor: '#02c2cb',
            divId: '#widget1',
            min: 0,
            max: 100,
            ord: 'station:|slot:/Drivers/NiagaraNetwork/SetPoint', // use absolute ord
            orientation: 'horizontal', // horizontal or vertical
            showTextValue: 'true',
            textMargin: '10px',
            textColor: '#4d4d4d',
            textAlignment: 'center', // left, center, or right
            textWeight: 'bold', // bold, normal, 100, 200, etc
            textFontSize: '28px',
        });
    });
</script>
</head>
<div id="widget1" style="width:500px;height:150px;"></div>


Licensing


Widgets and drivers must be licensed with us. Licenses are bound to the stations host Id. You will be provided access to the Software and Licensing Portal where you can manage your own licenses. Here you can add, update, or delete licenses as needed.

There are few ways to get a license file:

1. Add our licensing module to your station services. This module automatically retrieves the license from our servers and saves it to your stations shared folder directory.

2. Alternatively, Login to the Software and Licensing Portal (link provided in Order Confirmation) and add your host id's as needed. Copy the license file to the stations shared directory.

Finally, make sure the station user has access to WLicenseService in the user management and category service section.
