Niagara Tri State Switch


Overview

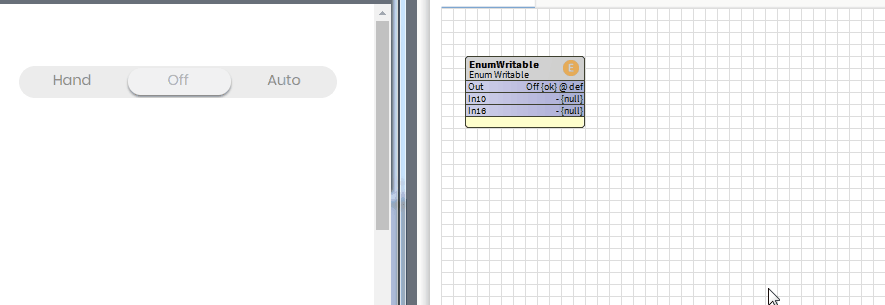

The Tri State Switch binds to an EnumWritable and can control up to 3 different states. For example, On/Off/Hand. Switch between states easily for quick control. Its completely configurable and easy to use.

Usage

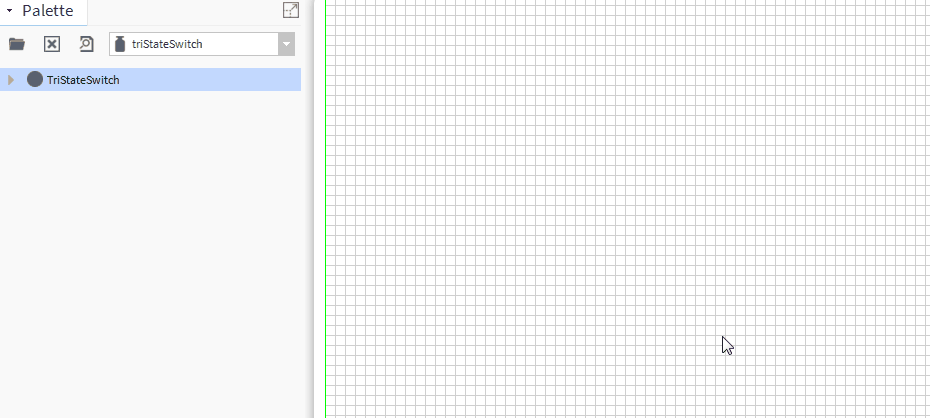

1. Copy the triStateSwitch-ux.jar file to your modules directory.
2. Open the module from your palette file.
3. Drag and drop the widget from the palette onto your px view.

tridum grahpic showing Tri State Switch

trend bacnet gauge

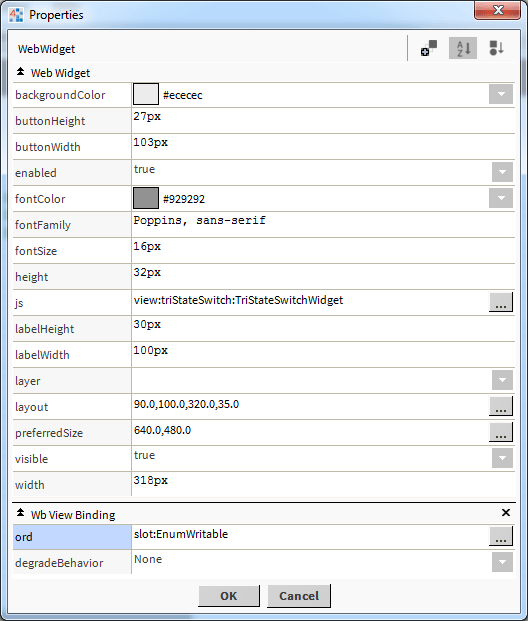

Properties


The widget has a number of configurable properties that can be used to modify look, feel, and functionality. Change the properties as required.

Main Ord Binding:
Set this to an absolute ord, e.g.
station:|slot:/Drivers/NiagaraNetwork/EnumWritable or relativized ORD e.g.
slot:EnumWritable
The ord should point to a enum writable.

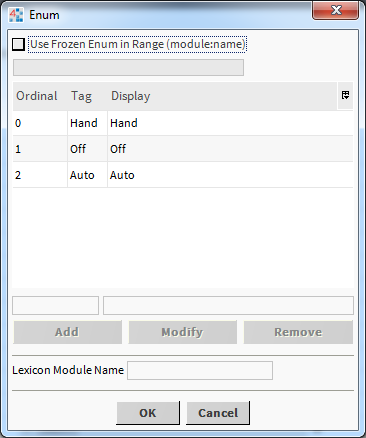

enum range

Enum Range


Example Enum Range:

Using in your HTML Page


You can now use the widget in your custom html page as long as the html file is in a appropriate station directory.
E.g. C:/../stationName/shared/webfiles/demo1.html

1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:


<script type="text/javascript">

    var require = {
        paths: {
            "nmodule": "/module",
            "baja": "/module/bajaScript/rc/plugin/baja",
            "bajaScript": "/module/bajaScript/rc",
            "bajaux": "/module/bajaux/rc",
            "lex": "/module/js/rc/lex/lexplugin",
            "css": "/module/js/com/tridium/js/ext/require/css",

            "jquery": "/module/js/rc/jquery/jquery-2.1.1",  // For N4.4 or higher use /module/js/rc/jquery/jquery-3.2.0.min
            "Promise": "/module/js/rc/bluebird/bluebird",

            // these are runtime dependencies
            "hbs": "/module/js/rc/require-handlebars-plugin/hbs", // For N4.4 or higher use /module/js/rc/handlebars/handlebars.min-v4.0.6
            "i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
            "json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
            "underscore": "/module/js/rc/underscore/underscore",
        },

        hbs: {
            disableI18n: true
        }
    }
</script>
<script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>

<script>
    require(['/module/triStateSwitch/rc/triStateSwitchWidget.run.js'], function (app) {

        app.initialiseTriStateSwitchWidget({
            backgroundColor: '#ececec',
            buttonHeight: '27px',
            buttonWidth: '103px',
            fontColor: '#929292',
            fontFamily: 'Poppins, sans-serif', // e.g, Helvetica, Arial, sans-serif
            fontSize: '16px',
            divId: '#widget1',
            height: '32px',
            labelHeight: '30px',
            labelWidth: '100px',
            ord: 'station:|slot:/Drivers/NiagaraNetwork/EnumWritable', // use absolute ord
            width: '318px',
        });
    });
</script>

</head>
<!--Rest of your html below...-->
<!--Gauge to go here-->
<div id="widget1" style="width:300px;height:300px;"></div>


Licensing


Widgets and drivers must be licensed with us. Licenses are bound to the stations host Id. You will be provided access to the Software and Licensing Portal where you can manage your own licenses. Here you can add, update, or delete licenses as needed.

There are few ways to get a license file:

1. Add our licensing module to your station services. This module automatically retrieves the license from our servers and saves it to your stations shared folder directory.

2. Alternatively, Login to the Software and Licensing Portal (link provided in Order Confirmation) and add your host id's as needed. Copy the license file to the stations shared directory.

Finally, make sure the station user has access to WLicenseService in the user management and category service section.

licensing for trend iq vision

Niagara Dashboard


Niagara IOT technologies and modern toolsets allow you to build a powerful Niagara dashboard which is real time, data-driven, and cost effective. Our widgets are purpose-built by providing information with faster communication through real-time, data-driven, dashboards for web, desktop and mobile devices. You can now create a cutting-edge display of conventional HVAC system graphics, Dashboards, Alarms & Scheduling, Historical Data, and Analytics.
