Niagara Value Tooltip


Overview


The value tooltip widget shows the current value of a numeric point. When a cursor is positioned over the value a tooltip is displayed. The widget has a number of configurable properties that can be used to modify look, feel, and functionality.

Usage

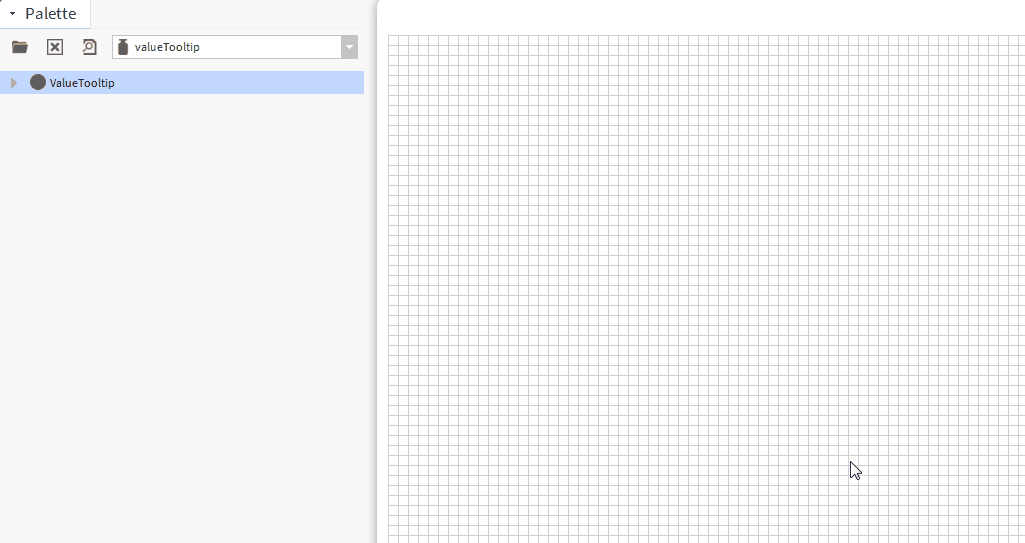

1. Copy the valueTooltip-ux file to your modules directory.
2. Open the module from your palette file.
3. Drag and drop the widget from the palette onto your px view.

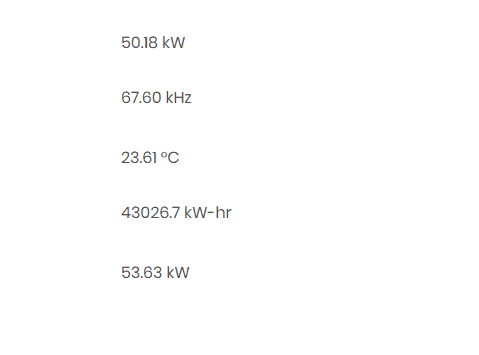

Value Tooltip for niagara

niagara value tooltip properties

Properties


The widget has a few configurable properties that can be used to modify look, feel, and functionality.

Ord Binding
Set this to an absolute ord, e.g.
station:|slot:/Drivers/NiagaraNetwork/AHU5 or relativized ORD e.g.
slot:AHU5

Location:

Location of tooltip, e.g. top, right, bottom, left

Height, PositionLeft, PositionLeft:

Use in conjunction together to place anywhere on screen.

Colors:

When changing colors, all tooltips on screen are affected.

Using in your HTML Page


You can now use the widget in your custom html page as long as the html file is in a appropriate station directory.
E.g. C:/../station/webfiles/demo.html

1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:


<script type="text/javascript">

    var require = {
        paths: {
            "nmodule": "/module",
            "baja": "/module/bajaScript/rc/plugin/baja",
            "bajaScript": "/module/bajaScript/rc",
            "bajaux": "/module/bajaux/rc",
            "lex": "/module/js/rc/lex/lexplugin",
            "css": "/module/js/com/tridium/js/ext/require/css",

            "jquery": "/module/js/rc/jquery/jquery-2.1.1",
            "Promise": "/module/js/rc/bluebird/bluebird",

            // these are runtime dependencies
            "hbs": "/module/js/rc/require-handlebars-plugin/hbs",
            "i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
            "json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
            "underscore": "/module/js/rc/underscore/underscore",
        },

        hbs: {
            disableI18n: true
        }
    }
</script>
<script type="text/javascript" src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
<script>
    require(['/module/valueTooltip/rc/valueTooltipWidget.run.js'], function (app) {

        app.initialiseValue({
            divId: '#widget1',
            height: '', // set with height, position left, and position right
            ord: 'station:|slot:/Drivers/NiagaraNetwork/Temp', // use absolute ord
            location: 'right',
            padding: '0.8em 1em',
            positionLeft: '',  // set with height, position left, and position right
            positionRight: '', // set with height, position left, and position right
            textPadding: '0 0 0 0',
            tooltipColor: '#050505',
            tooltipFontColor: '#ffffff',
            tooltipFontFamily: 'Poppins, sans-serif',
            tooltipFontSize: '14px',
            tooltipFontWeight: 'normal',
            valueFontColor: '#4d4d4d',
            valueFontFamily: 'Poppins, sans-serif',
            valueFontSize: '16px',
            valueFontWeight: 'normal'
        });
    });
</script>

</head>
<div id="widget1" style="width:300px;height:25px;"></div>
<!--Rest of your html below...-->


Licensing


Widgets and drivers must be licensed with us. Licenses are bound to the stations host Id. You will be provided access to the Software and Licensing Portal where you can manage your own licenses. Here you can add, update, or delete licenses as needed.

There are few ways to get a license file:

1. Add our licensing module to your station services. This module automatically retrieves the license from our servers and saves it to your stations shared folder directory.

2. Alternatively, Login to the Software and Licensing Portal (link provided in Order Confirmation) and add your host id's as needed. Copy the license file to the stations shared directory.

Finally, make sure the station user has access to WLicenseService in the user management and category service section.
