Niagara Totals Chart

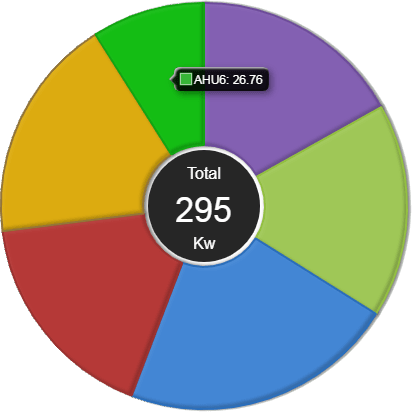

niagara Total Chart adds up values Click above for Demo...

Overview


The totals chart allows you to add up values from up to 6 different objects. Each ord binds to a numeric point or numeric writable. The chart has a number of configurable properties that can be used to modify look, feel, and functionality. Also check out the Energy View Template.

Usage

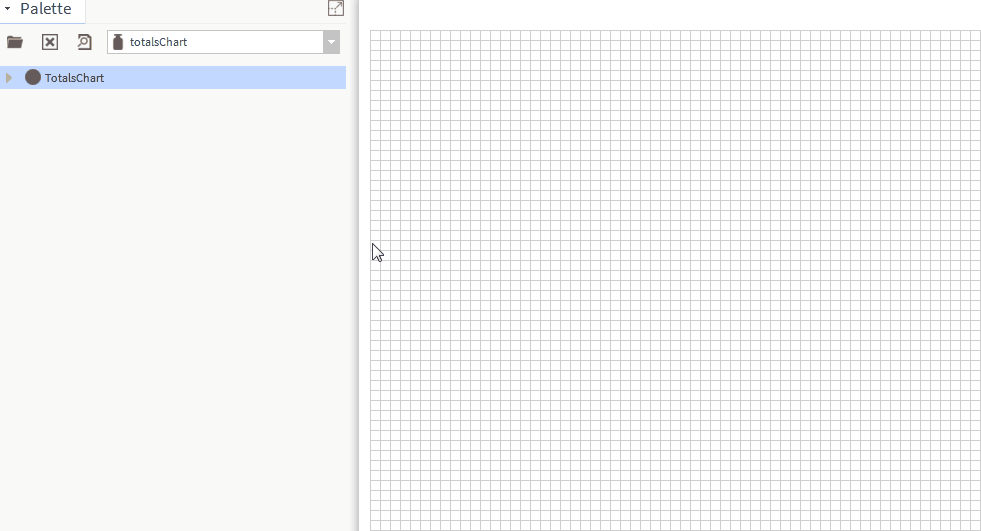

1. Copy the totalsChart-ux.jar file to your modules directory.
2. Open the module from your palette file.
3. Drag and drop the widget from the palette onto your px view.

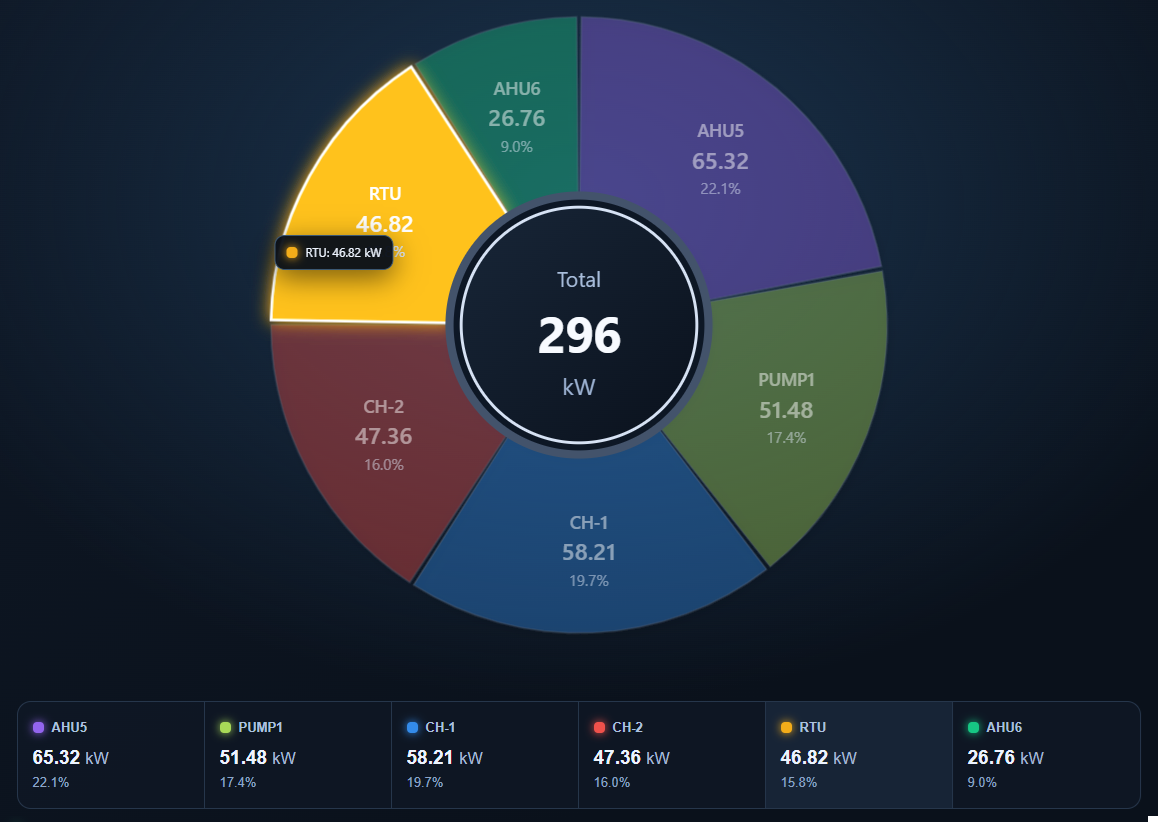

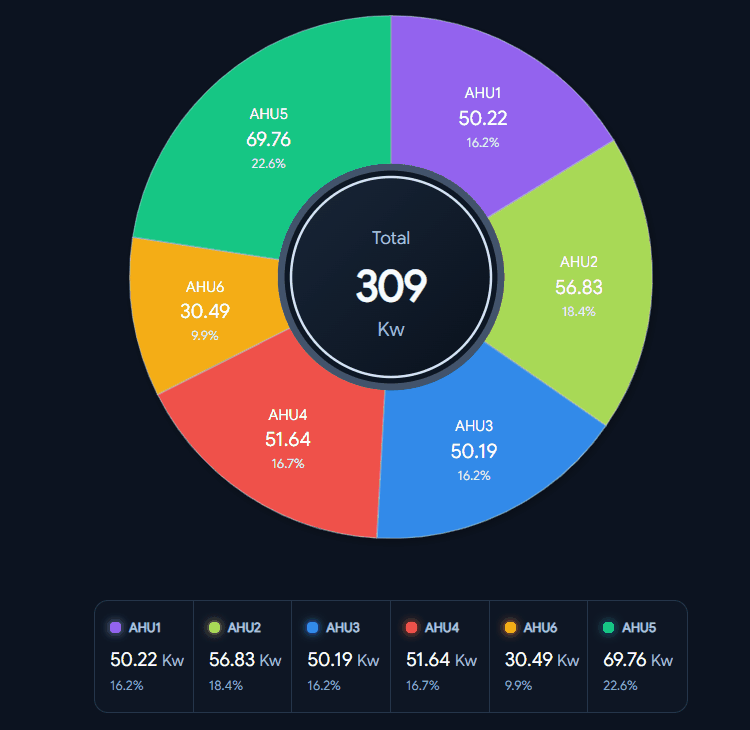

bms chart adding up values with time series

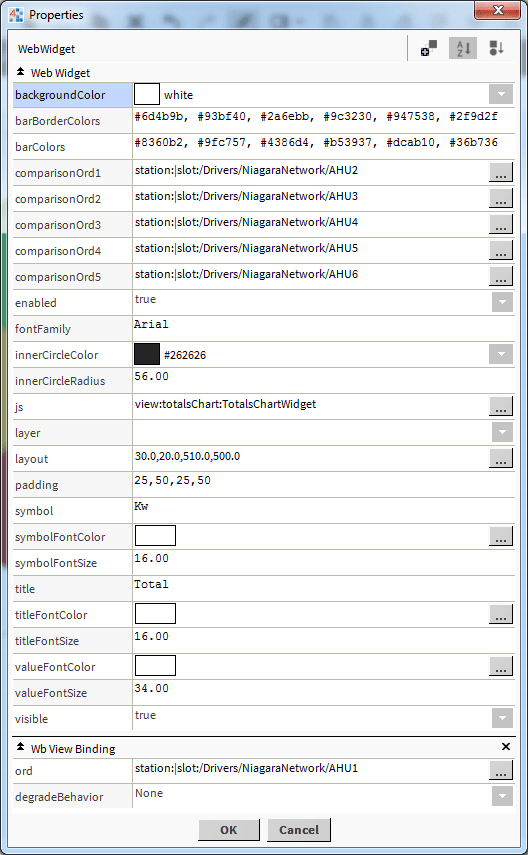

bms totals chart properties

Properties


Ords:
Each ord reference should be unique;

Main Chart Binding - set this to an absolute ord, e.g. station:|slot:/Drivers/NiagaraNetwork/AHU5 or relativised ORD e.g. slot:AHU5

Comparison Ords 1-5 - set this to an absolute ord, e.g. station:|slot:/Drivers/NiagaraNetwork/AHU5. Only absolute ords accepted here. A relativised ORD will not resolve for these fields.

Using in your HTML Page


You can now use the widget in your custom html page as long as the html file is in a appropriate station directory.
E.g. C:/../stationName/shared/webfiles/demo1.html

1. Create an html page and place in your station files directory.
2. Create a div element and give it an id so you can inject the widget into this area. E.g.: widget1.
3. Add the following scripts before the closing head tag or the closing body tag. E.g.:


    <script type="text/javascript">

        var require = {
            paths: {
                "nmodule": "/module",
                "baja": "/module/bajaScript/rc/plugin/baja",
                "bajaScript": "/module/bajaScript/rc",
                "bajaux": "/module/bajaux/rc",
                "lex": "/module/js/rc/lex/lexplugin",
                "css": "/module/js/com/tridium/js/ext/require/css",

                "jquery": "/module/js/rc/jquery/jquery-2.1.1.min", // use jquery-3.2.0.min for versions higher than N4.4
                "Promise": "/module/js/rc/bluebird/bluebird",

                // these are runtime dependencies
                "hbs": "/module/js/rc/require-handlebars-plugin/hbs",
                "i18nprecompile": "/module/js/rc/require-handlebars-plugin/hbs/i18nprecompile",
                "json2": "/module/js/rc/require-handlebars-plugin/hbs/json2",
                "underscore": "/module/js/rc/underscore/underscore",
            },

            hbs: {
                disableI18n: true
            }
        }
    </script>
    <script type="text/javascript"
            src="/module/js/com/tridium/js/ext/require/require.min.js"></script>
    <script>
        require(['/module/totalsChart/rc/totalsChartChartWidget.run.js'], function (app) {

            app.initialiseTotalsChart({
                backgroundColor: null,
                barColors: '#8360b2, #9fc757, #4386d4, #b53937, #dcab10, #36b736',
                barBorderColors: '#6d4b9b, #93bf40, #2a6ebb, #9c3230, #947538, #2f9d2f',
                comparisonOrd1: '',  // only absolute ords accepted. e.g. station:|slot:/Drivers/NiagaraNetwork/AHU1
                comparisonOrd2: '',  // only absolute ords accepted. e.g. station:|slot:/Drivers/NiagaraNetwork/AHU2
                comparisonOrd3: '',  // only absolute ords accepted. e.g. station:|slot:/Drivers/NiagaraNetwork/AHU3
                comparisonOrd4: '',  // only absolute ords accepted. e.g. station:|slot:/Drivers/NiagaraNetwork/AHU4
                comparisonOrd5: '',  // only absolute ords accepted. e.g. station:|slot:/Drivers/NiagaraNetwork/AHU5
                comparisonOrd6: '',  // only absolute ords accepted. e.g. station:|slot:/Drivers/NiagaraNetwork/AHU6
                divId: '#widget1',
                fontFamily: 'Arial',
                innerCircleRadius: 56,
                innerCircleColor: '#262626',
                padding: '25,50,25,50',
                symbol: 'Kw',
                symbolFontSize: 16,
                symbolFontColor: '#fff',
                titleFontColor: '#fff',
                titleFontSize: '16px',
                title: 'Total',
                valueFontSize: 34,
                valueFontColor: '#fff',
            });
        });
    </script>
    </head>
    <!--Rest of your html below...-->


Licensing


Widgets and drivers must be licensed with us. Licenses are bound to the stations host Id. You will be provided access to the Software and Licensing Portal where you can manage your own licenses. Here you can add, update, or delete licenses as needed.

There are few ways to get a license file:

1. Add our licensing module to your station services. This module automatically retrieves the license from our servers and saves it to your stations shared folder directory.

2. Alternatively, Login to the Software and Licensing Portal (link provided in Order Confirmation) and add your host id's as needed. Copy the license file to the stations shared directory.

Finally, make sure the station user has access to WLicenseService in the user management and category service section.

niagara 3d chart licensing
